Open Head Drum
Open Head Steel Drum
The open head steel drum meets global standards from the United Nations for use in packaging and transporting solid and liquid food materials, hazardous and non-hazardous chemicals, beverages, agricultural products, and other items.
The open head steel drum is produced and delivered by Beh Chelik Matin using fully automated and modern production lines and in various thicknesses according to customer needs.
Features of the open head steel drum:
- Equipped with a high-strength steel ring
- Electrostatic powder painting system
- 7 layers Seamer
Technical specifications
Open Head Steel Drum
No | Thickness bottom Body Top | Height | Inner diameter | External diameter | Distance corrugated | Distance floor | lid depth | ||
|---|---|---|---|---|---|---|---|---|---|
1 | 1.0 | 1.0 | 1.0 | 880.5 ± 5 | 571.5±2 | 585 ± 2 | 280 ± 5 | 17.5 ± 2 | 17.5±2 |
2 | 1.0 | 0.9 | 1.0 | 880.5 ± 5 | 571.5 ± 2 | 585 ± 2 | 280 ± 5 | 17.5 ± 2 | 17.5±2 |
3 | 0.9 | 0.9 | 0.9 | 880.5 ± 5 | 571.5 ± 2 | 585 ± 2 | 280 ± 5 | 17.5 ± 2 | 17.5±2 |
4 | 1.0 | 0.8 | 1.0 | 880.5 ± 5 | 571.5 ± 2 | 585 ± 2 | 280 ± 5 | 17.5 ± 2 | 17.5±2 |
5 | 0.9 | 0.8 | 0.9 | 880.5 ± 5 | 571.5 ± 2 | 585 ± 2 | 280 ± 5 | 17.5 ± 2 | 17.5±2 |
6 | 0.8 | 0.8 | 0.8 | 880.5 ± 5 | 571.5 ± 2 | 280 ± 5 | 280 ± 5 | 17.5 ± 2 | 17.5±2 |
7 | 1.0 | 0.7 | 1.0 | 880.5 ± 5 | 571.5 ± 2 | 585 ± 2 | 280 ± 5 | 17.5 ± 2 | 17.5±2 |
8 | 0.9 | 0.7 | 0.9 | 880.5 ± 5 | 571.5 ± 2 | 585 ± 2 | 280 ± 5 | 17.5 ± 2 | 17.5±2 |
Features and standards
Get familiar with metal barrel specifications and standards via Beh Chelik Matin company
Beh Chelik Matin standards
Global standards(15750)
National Standard of Iran No. (15661-2)
ISO 9001:2015 certification
Features of Beh Chelik Matin open head steel drum
Drum capacity according to customer order, including 220-liter and 230-liter drums
Drum color selection according to customer order from the standard color palette
Type of internal coating according to customer order
Custom design printing on the drum body and lid
Electrostatic powder painting system
Competitive pricing in domestic and international markets
High strength and durability
The strength and durability of the open head steel drum are due to the type of body sheet, design, and electrostatic paint.
Dedicated transportation fleet
All steel drums produced by Beh Chelik Matin are delivered to customers by the company's specialized trucks.
Durability and long lifetime
The longevity of the steel drum is ensured by the material and type of design and technology used in the body and lid of the drum, as well as the painting process.
Paint Coating of Beh Chelik Matin Open Head Steel Drum
Electrostatic powder painting system and liquid painting are two common methods in the industry for applying protective and aesthetic coating on different surfaces, each of which has its own specifications and applications. The drums painting stage in Beh Chelik Matin is considered as one of the most special stages of the competitive advantages of this company in the drum industry.
Electrostatic painting
Electrostatic power painting is used on all types of metal surfaces, including steel drums, due to its better adhesion. This method has a long life and resistance to scratching, engraving and separation from the surface, which is one of the strengths of this painting type compared to liquid painting.
Required standards for the color coating of steel drums
The color coating of steel drums is very important in various industries, including chemical, pharmaceutical, and food and beverage industries. The importance of color coatings goes beyond aesthetics; these coatings include protection, regulatory compliance, and safety. Here, we examine the necessary standards for the color coating of Neck-In steel drums and highlight the legal requirements, performance criteria, application processes, and environmental considerations.

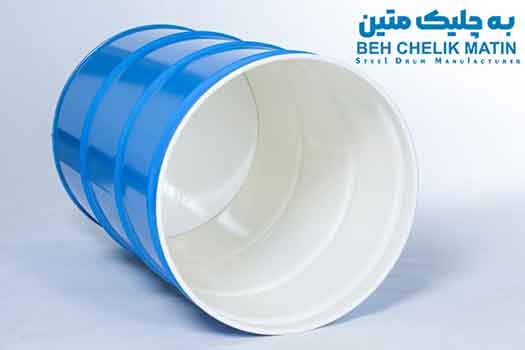

Inner coating of Open Head Steel Drums
The inner coating is one of the most important features of a drum, directly affecting the quality and safety of the materials inside. At Beh Chelik Matin drum manufacturing, drums are produced with specific internal coatings based on customer needs.The inner coating plays a crucial role in protecting the contents of the drum from corrosive agents, unwanted chemical reactions, and microorganism infiltration. This coating also helps maintain the physical and chemical properties of the products and prevents changes in their characteristics.
Printing custom logos on the body and lid of open head steel drums
Beh Chelik Matin drum manufacturers can print the customer’s logo or custom design on the body and top lid of the drum based on the customer’s request. The Beh Chelik Matin execution team supervises all stages of stencil making and printing on the drum to ensure the highest quality printing process.
To learn about the benefits of custom brand printing, you can click the button below.

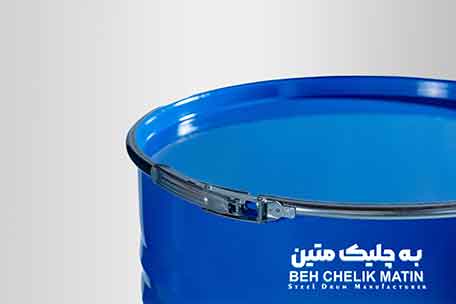

Sealed open head drum lids
Open head steel drums from Beh Chelik Matin are made from high-quality raw materials to be resistant to corrosive chemicals. These drums must have tightly sealed lids to prevent leakage. The plastisol around the drum neck is one of the key features of these drums.
The lever lock ring of drum lids are vital components in the design and production of industrial drums, playing an important role in maintaining the quality and safety of the drum’s contents. The specific features of lever lock rings, with different thicknesses, are used for packaging various materials.
Lever lock rings are generally made from durable metals such as steel and are installed on drum lids to ensure a tight and leak-resistant seal. These components are designed to withstand pressure and impact and prevent the entry of air and foreign materials into the drum.
Special thickness
The thickness of lever lock rings varies depending on the type of use and the drum’s contents. For example, drums used to transport hazardous chemicals or food products may require thicker rings to ensure the integrity of the contents against harsh transportation conditions.
Manufacturing standards
The production of Lever lock rings is carried out according to international standards, and the thicknesses used for these components typically range from 0.7 mm to 1.25 mm. These standards ensure that the drums can withstand the necessary pressures for safe transportation. These standards are adhered to in all drums produced by the Beh Chelik Matin brand, including Neck-in drums. Lever lock rings are used in various types of drums, including metal and plastic drums. These components are designed to be sealed if necessary.
Ultimately, the Lever lock ring of drum lids with special thickness play a key role in maintaining the safety and quality of the products inside the drums, and thus selecting the appropriate materials and thickness for their production is of great importance. Manufacturers must carefully consider customer needs and transportation conditions to ensure that the drums perform optimally.
Applications of open head steel drums
Neck-in steel drums have various applications. Some of the applications of these drums are:
- Storage and transportation of food products, including perishable foods
- Storage and transportation of pharmaceuticals
- Storage and transportation of adhesives and resins
- Storage and transportation of industrial waste
- Maintenance and transportation of lubricants (solid lubricants such as grease)
The competitive price of Beh Chelik Matin steel drum in domestic and foreign markets
Beh Chelik Matin steel drums are known in the domestic in foreign markets due to their high quality and competitive price. These drums are manufactured by using advanced technology and modern machineries, and more than 95% of their production is done automatically. Beh Chelik Matin drums are manufactured in different capacities, including 220 and 230 liter and possibility of single-color painting to three-color painting and silk printing on the side and top surface of drums.
These drums are suitable to use in various industries such as chemical, food, pharmaceutical, oil, resin, and all kinds of solvents and grease, and are used both in the domestic market and export of chemicals and industrial products.
This company operates with help of expertised staffs and modern equipment in accordance with the international and national standards of Iran and has been able to have a valuable position in improving the quality of drums as a final product.
To get more information about the price and desired features of your order, contact Beh Chelik Matin commercial team.
